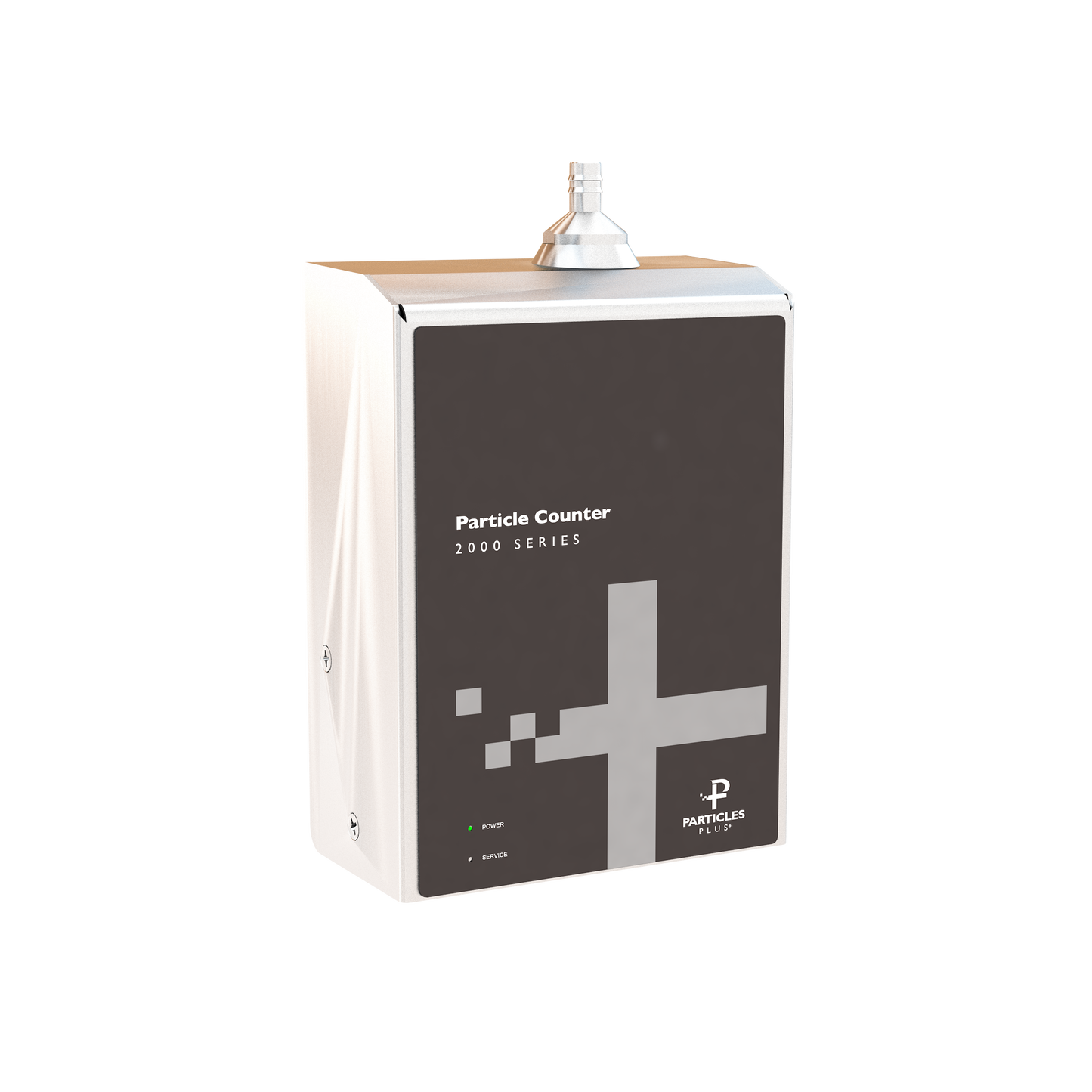

2301 and 2501 Remote Airborne Particle Counters 0.1 CFM (2.83 LPM)
2301 and 2501 Remote Airborne Particle Counters 0.1 CFM (2.83 LPM)
Couldn't load pickup availability
The 2301 and 2501 particle counters provide a range of particle size measurement from 0.3 or 0.5 to 25.0 μm at a flow rate of 0.1 CFM (2.83 LPM). These sensors allow for efficient particle counting with specifications that exceed the ISO 21501-4 and JIS B9921 calibration standards.
These sensors have 4 fixed particle size channels and are equipped with an integral critical orifice and flow sensor to provide a stable flow rate from an external vacuum source. Integration into a building automation or facility monitoring system is easy via isolated RS-485 Modbus communication.
2301 and 2501: Features and Benefits
•2301: Measures 0.3 μm to 25 μm
•2501: Measures 0.5 μm to 25 μm
•0.1 CFM (2.83 LPM) flow rate
•Long life laser diode technology
•Measures up to 4 channels of simultaneous data
•Accurate in high particle concentration environments
•Internal critical orifice
•Connect using Modbus RTU/ASCII over isolated RS-485
•Complies with ISO 21501-4 and JIS B9921 standards
•Easy to clean and wipe down with minimal particle traps
•Versatile mounting options
•Alarm light
•LED Indicators
•Seamless integration into a facility monitoring system
•Lightweight stainless steel enclosure
•2 year warranty. Extended warranties available.
Specifications
| Model | 2301 | 2501 |
| Size Range | 0.3 µm to 25 µm | 0.5 µm to 25 µm |
| Size Channels | Factory calibrated at 0.3, 0.5, 1.0, and 5.0 µm | Factory calibrated at 0.5, 1.0, 2.5, and 5.0 µm |
| Number of Channels | 4 channels | 4 channels |
| Counting Efficiency | 50% @ 0.3µm; 100% for particles > 0.45 µm per JIS | 50% @ 0.5µm; 100% for particles > 0.75 µm per JIS |
| Flow Rate | 0.1 CFM (2.83 LPM) | |
| Concentration Limits | 10,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4),
20,000,000 particles/ft3 @ 10% coincidence (as tested and validated1) |
|
| Light Source | Long life laser diode | |
| Zero Count | < 1 count / 60 minutes (< 1 particles /6 ft3) | |
| Calibration | NIST traceable | |
| Vacuum Requirements | External vacuum > 15” (38.1cm) of Hg | |
| Airflow | Internally monitored | |
| Alarm | User configurable alarm light | |
| Communication Modes | MODBUS™ RTU or ASCII outputs (over isolated RS-485) | |
| Standards | ISO 21501-4 and JIS B9921 | |
| Instrument Calibration | Recommended minimum once per year | |
| External Surface | Stainless steel | |
| Dimensions (L x W x H) | 3.59” x 1.83” x 5.01” (9.1 cm x 4.6 cm x 12.7 cm) including probes and connectors | |
| Weight | 1.65 lb. (0.75 kg) | |
| Accessories | Wiring Connector, operating manual on USB flash drive | |
| Optional Accessories | Power Supply, Remote Mounting Bracket, Stainless Steel Barbed Isoprobe (0.1 CFM/2.83 LPM), Purge Filter Assembly, and Sample & Vacuum Tubing | |
| Sample Time | 1 second to 18 hours | |
| Power | 9 – 24 VDC (< 2.5 watts) | |
| Operating Conditions | 41° to 104°F (5° to 40°C) / 20% to 95% non-condensing | |
| Storage Conditions | 32° to 122°F (0° to 50°C) / Up to 98% non-condensing | |
| Warranty | 2 year limited warranty. Extended warranties available. | |
