IKA

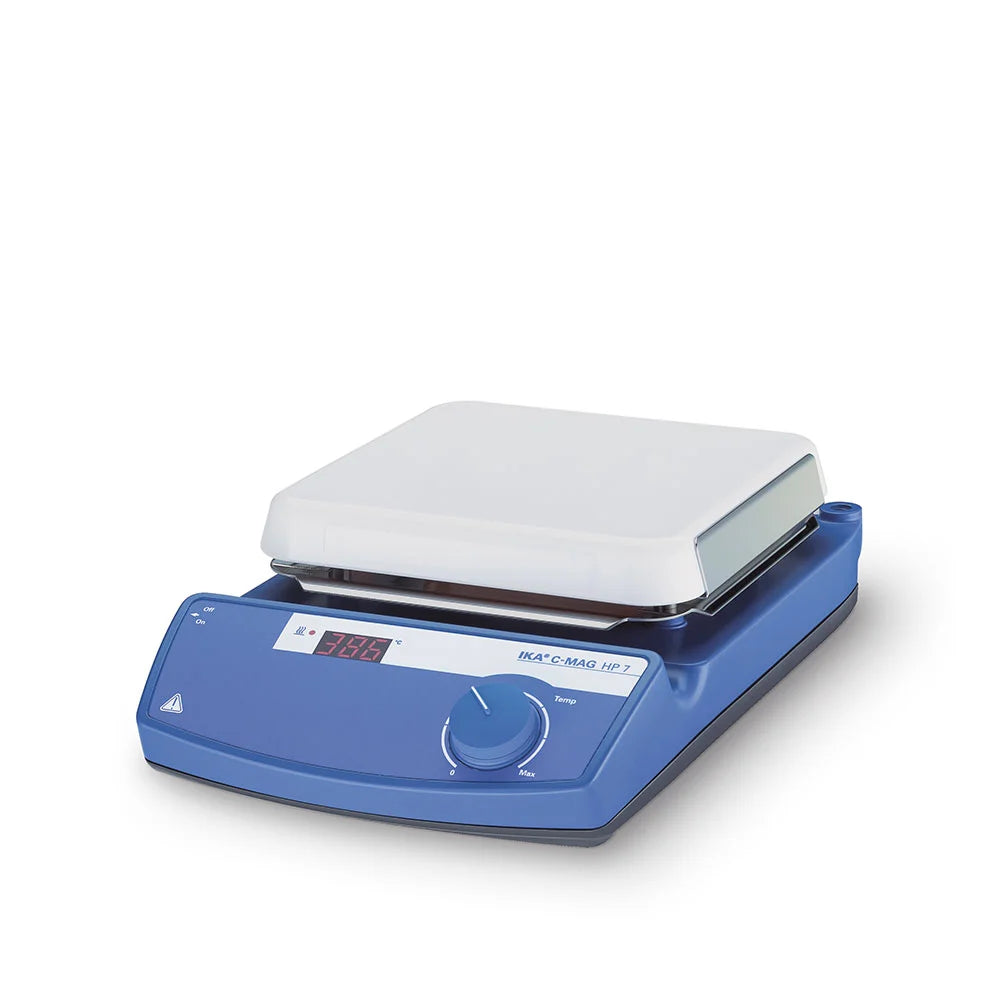

Hot plate C-MAG HP 7
Hot plate C-MAG HP 7
Regular price
€790,56
Regular price
Sale price
€790,56
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
cat.0003581800
C-MAG HP 7
Hotplate made of ceramic glass which offers excellent chemical resistance.
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
Technical Data
| Number of heating points | 1 |
| Heat output | 1000 W |
| Heating temperature range | 50 - 500 °C |
| Heat control | Turning knob |
| Connection for ext. temperature sensor | ETS-D5 |
| Volume max. | 10 l |
| Heating rate heating plate | 5 K/min |
| Set-up plate material | ceramic |
| Set-up plate dimensions | 180 x 180 mm |
| Dimensions (W x H x D) | 220 x 105 x 330 mm |
| Weight | 4.4 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 1005 W |
