Tempering Chambers INC 125 FS digital (SP20) Incubator shaker
Tempering Chambers INC 125 FS digital (SP20) Incubator shaker
Couldn't load pickup availability
cat.0020117221

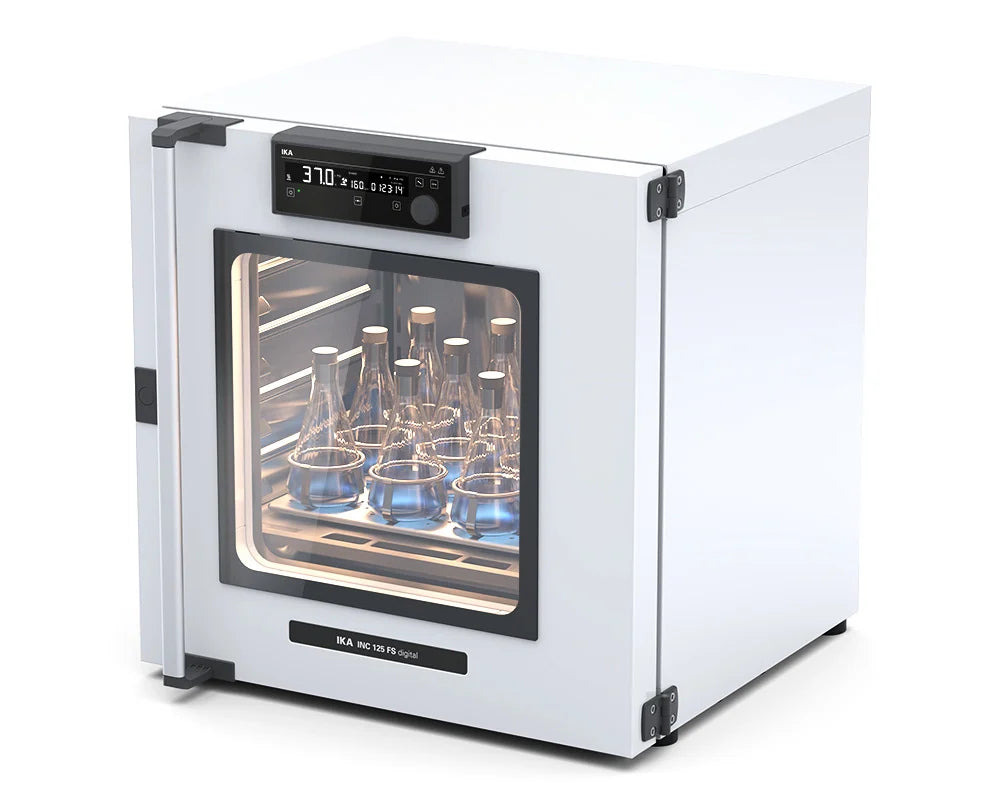

INC 125 FS digital (SP20) Incubator shaker

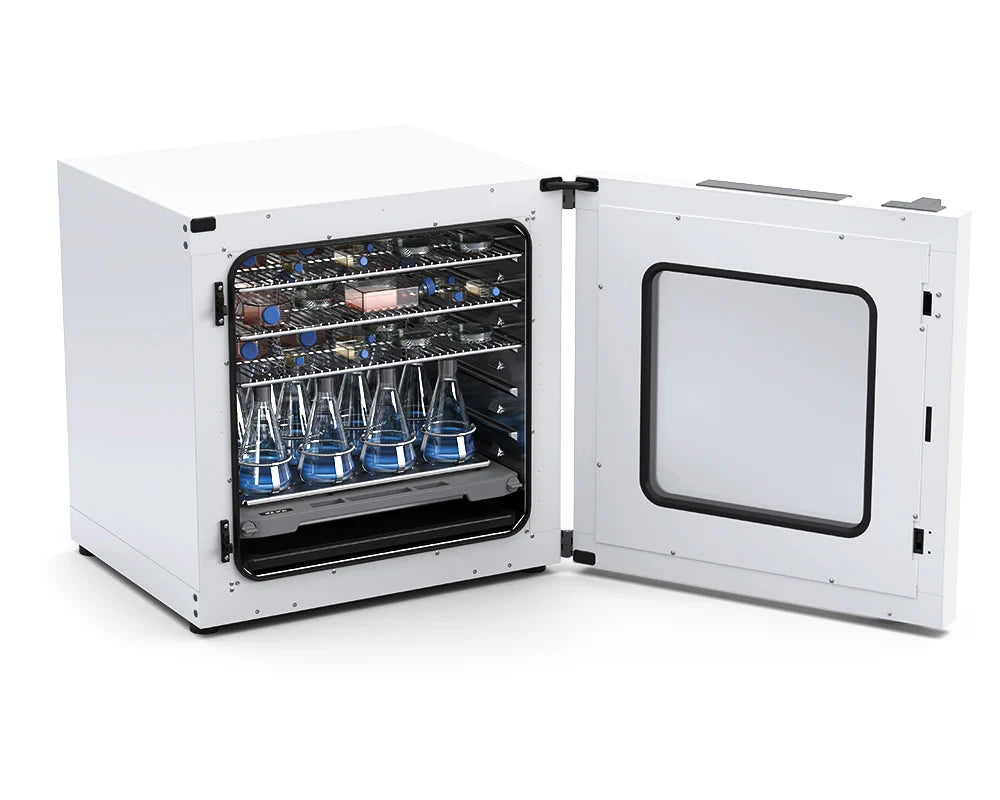

INC 125 FS digital is the first incubator shaker with a patented removable shaker platform. Without the platform, the unit can be used like a normal incubator. The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaker platform).
Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubator shaker is the perfect solution for cell cultivation and other microbiological applications.
Patented removable shaker platform
• High shaking speed up to 300 rpm
• Shaking stroke: 20 mm (optional: 25 mm) for optimum oxygen input

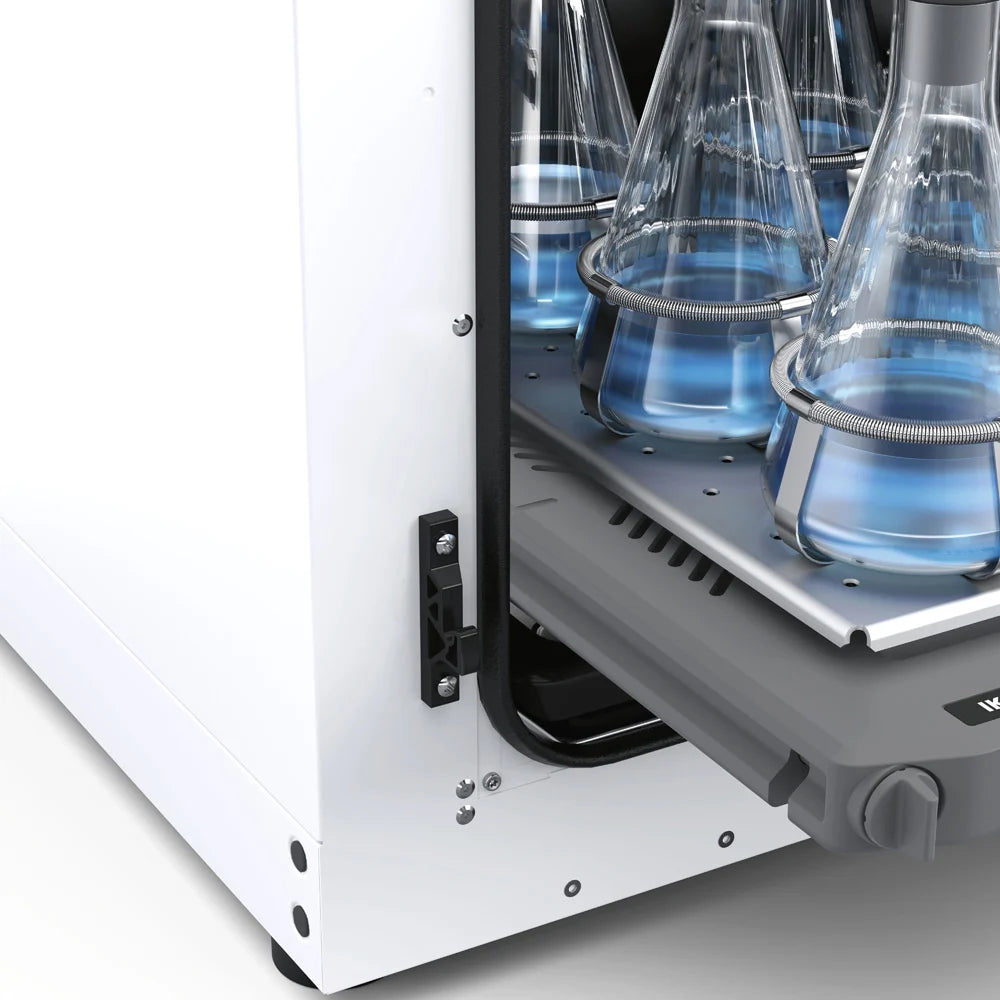

• The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading.
• The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
• Automatic detection of the shaker platform allows the temperature to be automatically adjusted in decontamination mode (100 or 120°C)
• When the door is opened, the shaking function stops automatically
• Shaking and temperature control function can be used independently of each other
Easy to clean
• Simple cleaning of the interior thanks to rounded corners and flat surfaces made of corrosion-resistant material AISI 304
• The optional drip pan provides additional safety in case of liquid overflow or can be used as water reservoir to increase humidity in the chamber
• Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)
Optimal temperature control
• Wide temperature range: RT +8°C to 80 °C
• Excellent temperature management and optimized energy consumption thanks to very good insulation of the inner chamber and triple-glazed door with window
• Internal air circulation can be influenced by electronically adjustable fan speed (0-100%)
Simple and intuitive operation
• Very large LCD display for easy reading
• Large viewing window and switchable interior lighting for observation of samples
• Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions
Versatile accessories
• Up to two devices (incubator shaker or incubator) can be stacked (with corresponding accessories)
• Different trays available
• Shaking platform available with 20 or 25 mm shaking stroke
Services
• Door hinge on the right, changeable on request
• Installation and Operation Qualification (IQ/OQ) available on request
Scope of delivery
- INC 125 FS digital
- shaker platform SP20
- IO T 2.10 Wire grid tray, chrome plated
- Tilt protection (2 pcs.)
- USB A-B Cable
- Calibration certificate at 37°C
Technical Data
| Heat output | 750 W |
| Working temperature | room temp. +8 - 80 °C |
| Adjustment and display resolution | 0.1 K |
| Temperature stability (37°C @22°C) | ±0.1 K |
| Temperature homogeneity (37°C @22°C) | ±0.2 K |
| Temperature heat up time (37°C @22°C) | 12 min |
| Temperature door recovery (37°C @22°C) | 2 min |
| Temperature display | yes |
| Display | LCD |
| Time setting max. | 100 d |
| Number of trays max. | 6 |
| Load for one tray max. | 20 kg |
| Operating area inner chamber | 550 x 550 x 415 mm |
| Total volume inner chamber | 125 l |
| Thermal safety devices according DIN 12880 | TB class 1 |
| Set-point limiter with safety shutdown | yes |
| Door with window | yes |
| Temperature sensor control | PT 100 4 wire |
| Cleaning thermal decontamination (120°C) | yes |
| Thermal decontamination with SP20/25 (100°C) | yes |
| Shaking stroke | 20 mm |
| Speed range | 10 - 300 rpm |
| Speed deviation | ±5 rpm |
| Permissible shaking weight (incl. attachment) | 7.5 kg |
| Set-up plate dimensions | 340 x 480 mm |
| Power consumption at 37°C | 85 Wh/h |
| Dimensions (W x H x D) | 700 x 720 x 635 mm |
| Weight | 70 kg |
| Permissible ambient temperature | 15 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| USB interface | USB-B |
| Voltage | 200 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 850 W |
| Power input max. | 850 W |
| Power input standby | 2 W |
| Fuse | 2x T5.0A 250V |
