Bürkle GmbH

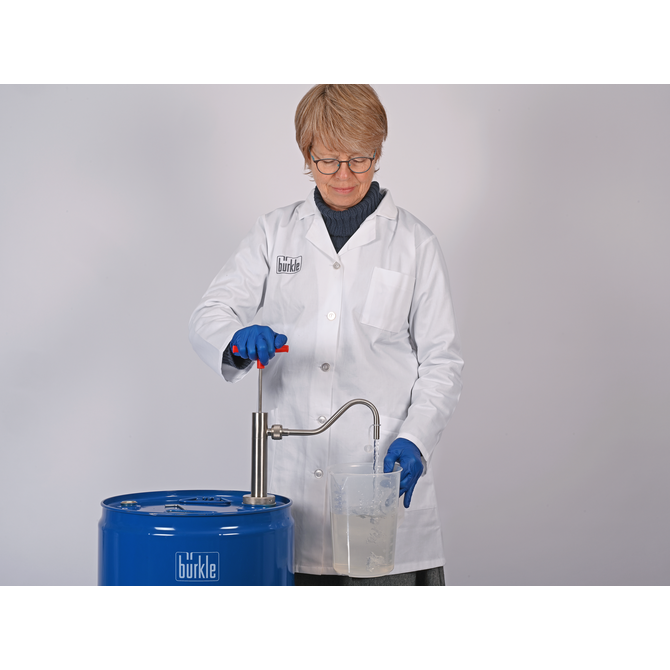

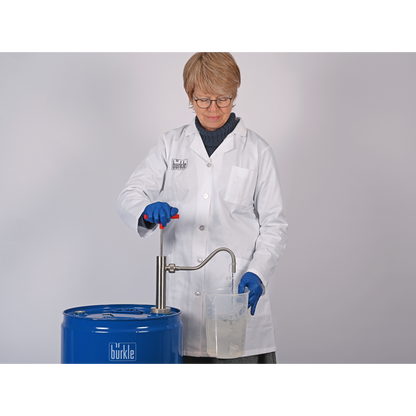

Stainless steel barrel pump for flammable liquids

Stainless steel barrel pump for flammable liquids

Regular price €334,04
Regular price Sale price €334,04
Sale Sold out
Taxes included. Shipping calculated at checkout.
Models

The Bürkle barrel pump made of stainless steel AISI 304 (1.4301) is suitable for filling
combustible and easily flammable liquids. The barrel pump can conduct electricity and therefore fulfills the requirements for handling flammable liquids in combination with
the accessory antistatic set.

Drum pump for precise dispensing of flammable liquids

  • Ideal for highly flammable or aggressive liquids
  • Meets the highest safety standards
  • Economical and durable
  • For precise and safe filling

Specifications

General material

1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304

Further materials

PTFE
Polytetrafluoroethylene

Throughput

Conveying capacity:190 ml/stroke
Delivery rate min.:9 l/min
Max. delivery rate:22 l/min

Ø

Immersion tube Ø:32 mm

Pump outlet

Outer outlet Ø:12 mm
Length of discharge tube:290 mm
Outlet type:Discharge tube

Delivery tube

Immersion depth max.:36 cm

Limit values

Viscosity up to:500 mPa·s

Colouring

Colour:silver

Connection

For openings from:32 mm
Connection type:Barrel screw joint

Filling container

Adjusting the immersion depth:Immersion depth infinitely adjustable
For containers up to:approx. 30 litres
